Wire Tube Condenser (single layer)

HOME / PRODUCT / Wire Tube Condenser (single layer) / 009 Wire Tube Condenser (single layer)

Contact us

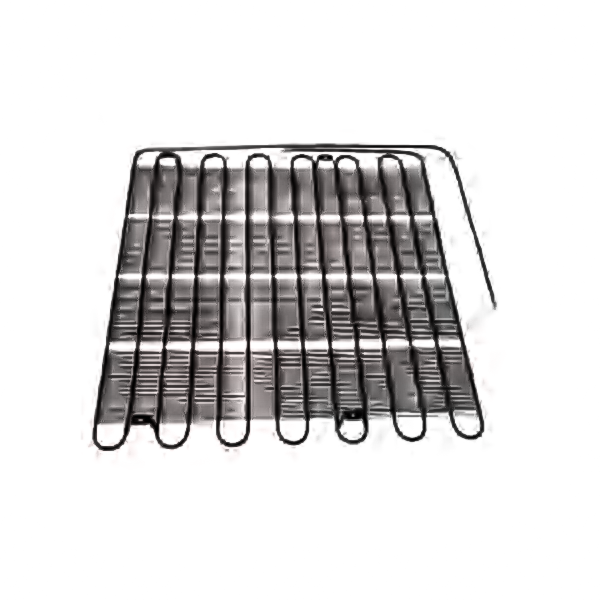

  • 009 Wire Tube Condenser (single layer)
  • 009 Wire Tube Condenser (single layer)
  • Product Details
  • FAQ
  • Contact Us

Performance

1)Surface with electrophoresis coating to prevent the corrosion.

2)Inner cleanness can meet the requirements of R134a &CFC cooling system.

3)Can satisfy the cooling capability requirements.

Raw material

1)Rolling welded steel tube:¢4.76~¢8×0.71

3)Bracket:Steel plate(SPCC)thickness:T=0.6~2.0mm

4)Steel plate: SPCC thickness T=0.6 0.8mm

Structure

1)Flat type of wire on tube condenser used at the back.

2)Bended or spiral type of wire on tube condenser used at the bottom Wrapped type of tube embed on plate.

Key process

Tube Bending, Welding, Fix the bracket, Weld the suction tube, (Folding or bending to shape), Leakage test, Cleaning, Coating, Inspection, Packing.

Technical Standards

Wire pitch:≥5mm, We can produce according to the drawing or sample.

supplied by clients, also can help the clients design and produce different condenser used in refrigerator and freezer.

Technical  standards

R134a Cooling system Tube Inside standards

Specification of E-coating

Residual moisture ≤5mg/100cm³

Residual impurity ≤10mg/100cm²

Residual mineral oil≤100mg/100cm³

Resdualchlorine ≤5vloppm

Residual paraffin ≤3mg/m

Biggest single impuritys 0.5mm

Coating thickness

Thickness of cathodic electrophoresis coating 15~20μm

Hardness of coating:>2H

Impact of coating:50cmg.kg/cm impact, no crack

Adhesion of coating:>two grade

Flexibility of coating Around: R=3D bend 180, no crack or no fall off

Corrosion resistant(Salt spray GB2423)

Cathodic electrophoresis coatimg>72h

About Us

Suzhou Yikangda Electric Appliances Co., Ltd., was established in 1992 and specializes in the design production, and sales of home appliances condensers and evaporators for refrigerators, freezers, showcase cold cabinets, and water dispensers. Since its foundation, with the belief in "Faith, Technic, Quality, Service" and the spirit of innovation, we have gained our customers' trust and support and become one of the largest condenser and evaporator manufacturers in the Yangtze River Delta.
Our company occupies 10000m', including 16500m' factory building, our company employee and technical management personnel own high quality and we own the advanced production and testing equipment. Depending on strong technique power and ability of developing new product, our products cover the whole domestic market and also exported to America, Europe, South East Asia, Middle East, South America NorthAmerica, such as; United States,Italy, Korea,India Canada, The quality and price are approved well by all customers.
The quality is the soul of one enterprise ,we pass the certification of1$09001 in 2001.From the selectionof the raw material to quality test and after sales service ,we execute strictly according too 1S09001systemwe have bean imoroving steadilyy to make sure that offering the product with the quality and the mostcompetitive price to our customer.
Our company locates in $uzhou City , Yangze River Delta,the most flourishing and booming area in chinawe enjoy convenient transportation ,it is only 1.5kms to the entrance ofthe Hu-Ning express way ,80km tothe Shanghai. Hongqiao Airportand seaport and 10kms to jing-Hu rail way station .120kms to the shanghaiseaport.
We adhere to "make all effects to congregate top -Class talents, turn out products and promote itself to prestigious enterprise "as our idea for management strategy, We hope to work together together and usher in a better future together with all customers from home and abroad.
