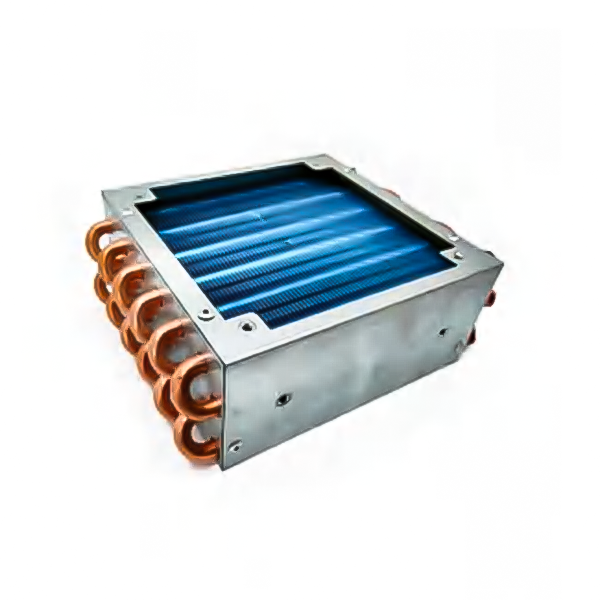

153 Fin Type Evaporator (Copper Tube)

PREV：154 Fin Type Evaporator (Copper Tube) NEXT：No next product
  • Product Details
  • Contact Us

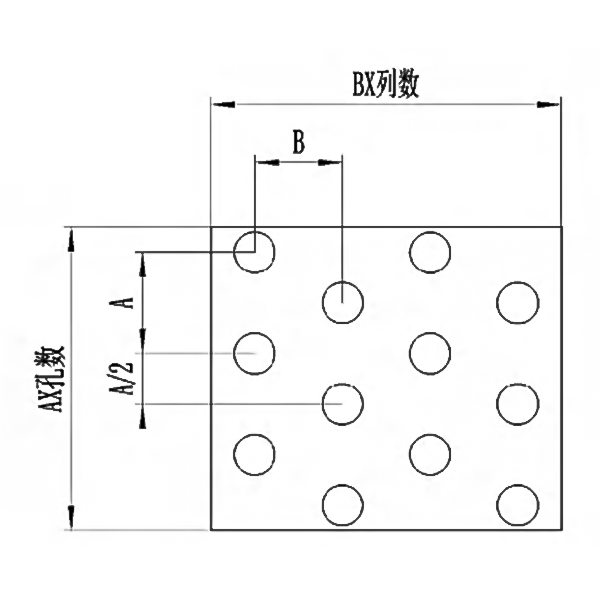

Heat exchanger parameter table

Specification

Tube Pitch A

Row Pitch B

Tube Size Tube Material

Fin Pitch

Fin Type

Fin Material

21 x 18.2 xΦ 5.0mm

21mm

18.2mm

Φ5.0mm

 CopperTube(SmoothTube or Rifled Tube0)

 2.0~3.5mm adjustable

Corrugated Fin

 Aluminum Fin (Hydrophobic fins or hydrophilic fin)

25 x 21.65 xΦ 6.35mm

25mm

21.65mm

Φ6.35mm

2.0~4.2mm adjustable

Corrugated Fin

21 x 18.2xΦ7.0mm

21mm

18.2mm

Φ7.0mm

2.0 〜4.5mm adjustable

Corrugated Fin

21 x 12.7 x 7.0mm

21mm

12.7mm

Φ7.0mm

1.2-1.8mm adjustable

Louvered Fin

25 x 12.5 xΦ 7.0mm

25mm

12.5mm

Φ7.0mm

1.5 〜3.2mm adjustable

Corrugated Fin

25 x 21.65 x 7.94mm

25mm

21.65mm

Φ7.94mm

2.0 〜4.5mm adjustable

Corrugated Fin or Flat Fin

25 x 15.88 xΦ 9.52mm

25mm

15.88mm

Φ7.94mm

1.5 〜3.5mm adjustable

Corrugated Fin or Flat Fin

25 x 21.65 xΦ 9.52mm

25mm

21.65mm

Φ9.52mm

1.5 〜6.Omm adjustable

Corrugated Fin or Flat Fin

35 x 35 xΦ 9.52mm

35mm

35mm

Φ9.52mm

1.5 〜6.0mm adjustable

Corrugated Fin or Flat Fin
